AFM35 Smoke Studies Fogger
The AFM35 Smoke Studies Fogger uses 35 ultrasonic piezo devices to generate 1.40 cubic meters of pure fog per minute to provide 11-12 feet of visible air flow for smoke studies and air flow characterization in clean rooms, sterile rooms, medical operating rooms and ISO suites. The AFM35 fog volume competes with nitrogen foggers for fog volume performance. But the AFM35 does not use liquid nitrogen, requiring only DI Water or WFI water to produce this higher volume of fog, adding adjustable fog volume, adjustable airflow, and wireless remote control. The AFM35 operates for about 45 minutes at maximum fog volume or up to 60 minutes at lower fog volumes. The AFM35 supports USP 797 In-situ Airflow Analysis; USP 800 Compound Pharmacy airflow tests; and Airflow Recovery Tests guided by ISO 14644-3, Annex B12; Airflow Visualization Tests guided by ISO 14644-3 Annex B7.
Description
AFM35 Smoke Studies Fogger produces 1.4 cubic meters fog per minute for 45 minutes and 11-12 feet of visual airflow – Request a Quote

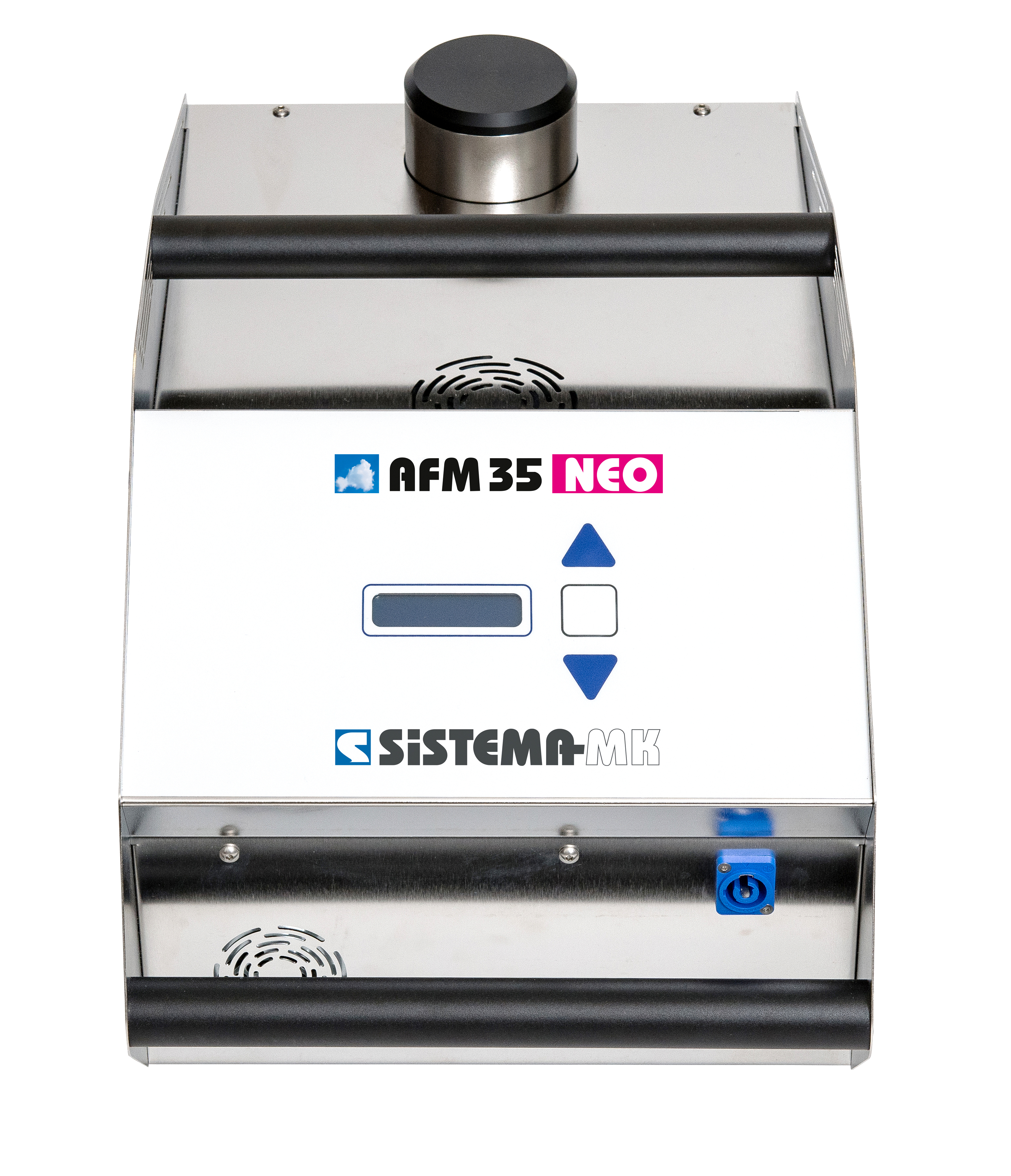

The AFM35 is designed with a 316L Stainless Steel body and enclosure and electro-polish finish. It is used in smoke studies and smoke tests to visualize airflow patterns and turbulence in clean rooms and pharmaceutical ISO suites, sterile rooms and medical operating rooms . The AFM35 will provide instant on/off operation as an airflow visualizer for smoke studies to monitor patterns and turbulence in controlled clean room areas.
Smoke studies and smoke tests to visualize airflow turbulence!
AFM35 Features
- 35 ultrasonic piezos converting DI Water or WFI water directly to 1.4 cubic meters of pure fog per minute
- Quick refill of Di Water or WFI water for continuous fog use, Easy to Fill Water Port and Water Level feedback on the LED Display
- About 187 ml per minute of fog density to provide 11-12 feet of visible airflow
- Two Carry Handles for easy carry convenience
- Direct control of fog volume and air flow velocity
- Transducer life is 3000 hours
- 80 mm Diameter hose with a 15 foot length
- Fog Hose and 120 VAC Power Supply (or 220 VAC) is available, 15 foot power cable
- Easy to use, quick operation set up, instant On/Off fogging operation
- Fog Curtain Wand, optional, plugs into end of Fog Hose to create a wide, visual fog curtain
- Rolling Carry Case, optional, for carry and storage of fog generator and parts
- Wireless Remote Control Fob for remote operation behind closed walls
Smoke Tests in Pharmaceutical ISO Suites, Sterile Rooms, Medical Rooms, Semiconductor Clean Rooms
- Supports Recovery Test evaluation, 100:1 recovery time as defined in ISO 14644-3
- Supports airflow visualization tests for ISO 14644-3 ANNEX B7
- Supports airflow visualization analysis for Pharmaceutical USP 797 Guidelines
- Pressure balancing between rooms and spaces
- Visualization of airflow patterns and turbulence
AFM35 DI Water Fogger– Request a Quote
AFM35 General Specifications
FOG Cycle | up to 45 minutes |
FOG Output | 1.4 Cubic Meters / minute |
Total FOG Output | 63 Meters Cubed of pure fog over 45 minute operation cycle |
Visible Fog viewing Distance | 11-12 feet |
Liquids Used | Pure Fog using DI Water, WFI Water or Sterile Water |
Class of Clean Room | Class 1 to 10,000 |
Typical Use | Clean Room, Sterile Room, ISO Suite, Medical Room |
Water capacity | 9.5 liters |
Useable Water capacity | 3.85 Liters |
Liquid Weight | about 16 pounds water weight |
Voltage Requirements | 115 VAC, 60 Hz, 14A |
Optional Voltage | 230 VAC, 50 Hz, 8A |
Metric Dimensions, (H x W x D) | 25.4cm x 22.9cm x 27.9cm |
US Dimensions, (H x W x D) | 11 inches x 12 inches x 21 inches |
Empty Weight | about 22 lbs |
GENERAL INFORMATION
The AFM35 is used in a smoke study of airflow visualization. It is a significant improvement over other Water Foggers by providing the highest volume output of any ultrasonic fog generator sold today.
Theory of Operation: Ultrasonic cavitation in DI water, WFI (water for injection) or sterile water. Use of any other liquids or chemicals voids the warranty.
The transducer life is ~1,000 hours. To protect the transducers from damage there is a level sensor that will interrupt the input voltage to the transducer module, should the water level drop to a low level. This ensures long life and reliability.
Notes
- The fog generated by this device contains microscopic water droplets of DI water. AVOID USING IN IMMEDIATE VICINITY OF ELECTRICAL APPLIANCES, WATER SENSITIVE PRODUCTS AND EQUIPMENT.
- The fan can be turned on at any time with power turned on. We recommend drying the water cavity out using an air dry tool, rather then using the fogger fan.
- The AFM35 should be used on a flat table or counter, not on a slanted surface. Tipping the enclosure with water in the water reservoir will damage the unit. DO NOT OVERFILL OR TIP THE AFM35 FOGGER.
Applications
AP35 Nitrogen-DI-Water Fogger produces about 5.5 Cubic Meters fog per minute for 35-70 minutes with 12-15 feet of visible fog in the airflow.
* Use Hand Gloves, full body smock and Face Shield when filling liquid nitrogen.
AFM35 Smoke Study Fogger, 1.4 Cubic Meters per minute for about 40 minutes with 10-12 feet of visible airflow distance.
Use DI Water, Sterile Water or Water for Injection is normal liquid used
Do not permit DI Water to go stagnant in the fogger water chamber. Drain and Dry the water cavity after each smoke study is completed.
